How to Determine the Capacitance of an Unknown Capacitor

Capacitive reactance is inversely proportional to the capacitance of the capacitor and frequency of the AC line reactance in ohms 1capacitance frequency What is the difference between. From your graph estimate the charge stored in the capacitor.

Question Video Finding An Unknown Capacitance From A Series Combination Nagwa

Theory Capacitors are electronic devices which have fixed values of capacitance and negligible resistance.

. This is the data collection for the experiment to determine an unknown capacitance. Draw a graph of current against time. 1 An oscilloscope can be used to measure a time constant as a means of finding the actual capacitance of a device or the amount of distributed capacitance in an electronic system.

Use your graph to calculate the time constant of the discharge circuit and hence the capacitance of the capacitor. The following table shows values for Voltage. You measure the capacitance at v 9 you are measuring 3 caps in series so it will measure low then slowly wind up the voltage applied till you either are approaching the isolation capacitor voltages or the voltage across the capacitor drops due to leakage measure via a second set of 100k isolating resistors to the voltmeter so you know how the capacitance.

A capacitor discharges through a resistor known resistance and the pot. Calculate the percent difference between the known capacitance values and your experimental values. The initital voltage for the following circuit is 20 V.

Capacitor Voltage During Charge Discharge. V is the voltage in volts. This method involves an oscilloscope and a function generator capable of sweeping through.

I ran across a double side. When the capacitor measures the same voltage as the source of course it will never actually get there just exponentially close so youll have to. You solved this once already assuming two concrete capacitance values for Ca and Cb.

Using equation 3 calculate the experimental capacitance of the unknown capacitor for C 1 C 2 C 1 and C 2 in parallel and C 1 and C 2 in series. The capacitance of a spherical capacitor is given by the relation. Take readings of current at regular intervals.

For C1 Q1 V1C1 for unknown capacitor C2 Q2 V2C2 Since Q1 Q2 Charge is conserved Then C1V1 C2V2 and go from there. We can write the final result for adding capacitors in series using the appropriate prefix. Do it again but this time use unknown capacitance values and call them Ca and Cb.

The Average power of the capacitor is given by. The capacitance C is given operationally by the charge stored in the device Q divided by the voltage. Evaluate the inverse of this sum.

While a scope wont provide a direct readout of capacitance the cap View the full answer. The total amount of time it takes for this capacitor to be charged is 6496 µS. Using L C1 for the unknown capacitor and C2 for the highly accurate capacitor.

C 1 536710⁶ 1F 186310⁷ F. Average Power of Capacitor. Record your results in a table.

We are trying to find the equivalent capacitance for the circuit. Use your graph to calculate the time constant of the discharge circuit and hence the capacitance of the capacitor. The radius of the outer sphere r 1 13 cm 013 m.

Dielectric constant of a liquid r 32. F1 for the resonant frequency of just L and C1 and f2 for the resonant frequency with L C1 and C2. In todays video we take a quick look at what a capacitor is how it is constructed and how to measure an unknown capacitor value.

Draw a graph of current against time. SHOW THE CALCULATIONS for C 1 the one marked 22 µF C pcalc and C scalc. From your graph estimate the charge stored in the capacitor.

Determine what unknown we are trying to find. Determine the capacitance of the capacitor. The radius of the inner sphere r 2 12 cm 012 m.

1C 1 210³ F 1 510⁶ F 1 610⁶ F 1 210⁷ F 536710⁶ 1F. Draw a graph of current against time. Determine the capacitance of the unknown capacitor in the RC circuit given the following information.

By changing the value of C unknown a different frequency is obviously obtained. Its formed with a parallel LC. To measure the capacitance of a capacitor we use a simple method.

Determine the known values of the capacitance for the capacitors. Use your graph to calculate the time constant of the discharge circuit and hence the capacitance of the capacitor. Measure the pd across the fully charged capacitor and recalculate the value of the capacitance.

Measuring Unknown Inductors Capacitors Method 1. We generate a square wave with an oscillator composed of a CD40106 inverting logic gate and an RC network. Energy Stored in a Capacitor.

Charge on the inner sphere q 25 μC 25 x 10-6 C. E is the energy in joules. The large assumption made for the homework is that charge is conserved between the two capacitors.

An oscilloscope probe tip and ground lead are connected across the capacitor. Add the inverses of capacitance. How do you find the value of an unknown capacitor.

E ½ CV 2. If the voltage across A is 120V the charge on cap A is. An oscilloscope probe tip and ground lead are connected across the capacitor.

C is the capacitance in farads. This method uses a known capacitor to form an RLC circuit. To determine an unknown capacitance using an oscilloscope a dc power source such as a 9-V battery a known resistance a switch and the capacitor are all connected in series.

T is the time in seconds. Power supply Multimeter three 01μF yellow capacitors one 001μF red capacitor one unknown rainbow capacitor five cables. Capacitor B is in series so the same charge appears across it.

We know the capacitance for the first. The Energy E stored in a capacitor is given by. P av CV 2 2t.

When there is nonegligible current flow. Discharge the capacitor through the known resistor. From your graph estimate the charge stored in the capacitor.

To determine an unknown capacitance using an oscilloscope a dc power source such as a 9-V battery a known resistance a switch and the capacitor are all connected in series. How to determine the capacitance of an unknown capacitor - Quora. Additionally you need a short wire jumper to shunt across the capacitor.

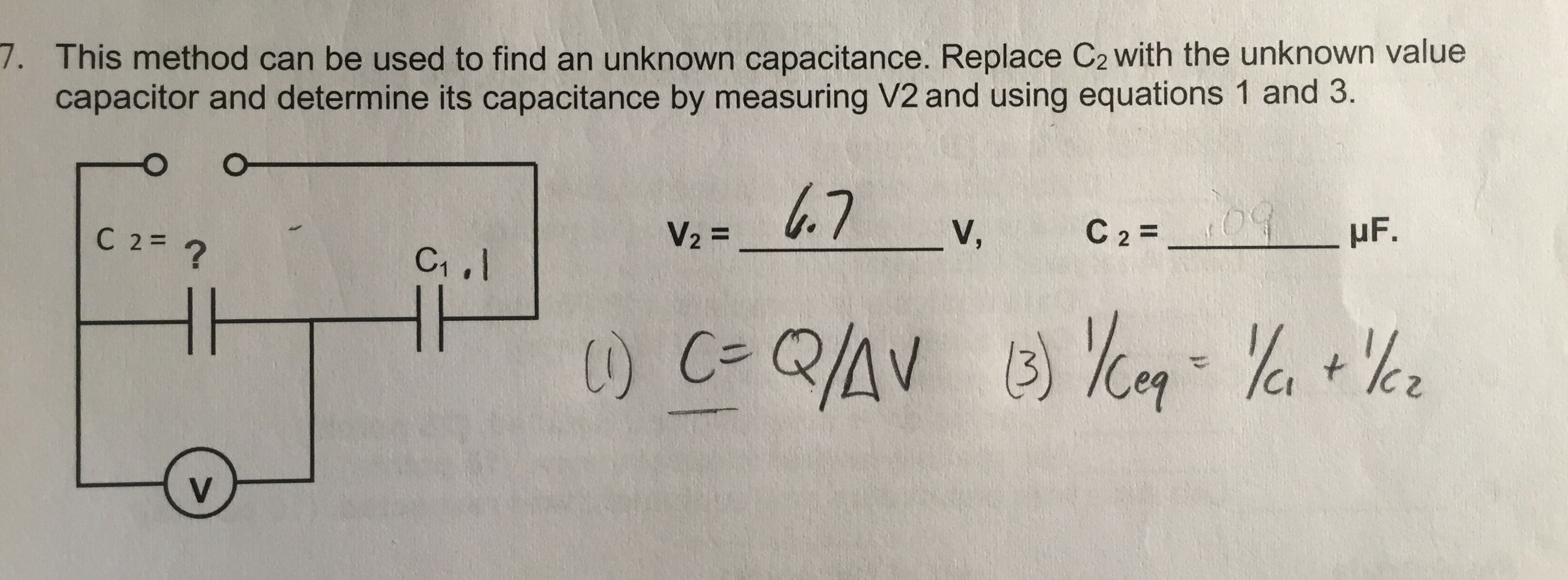

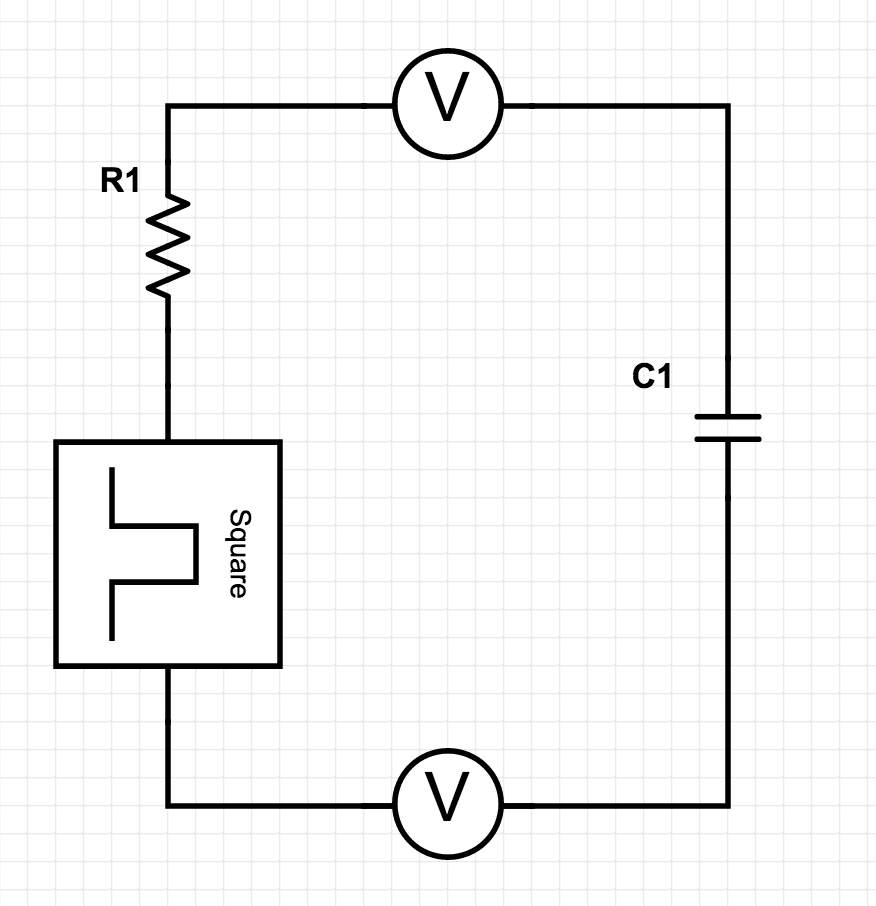

Solved This Method Can Be Used To Find An Unknown Chegg Com
